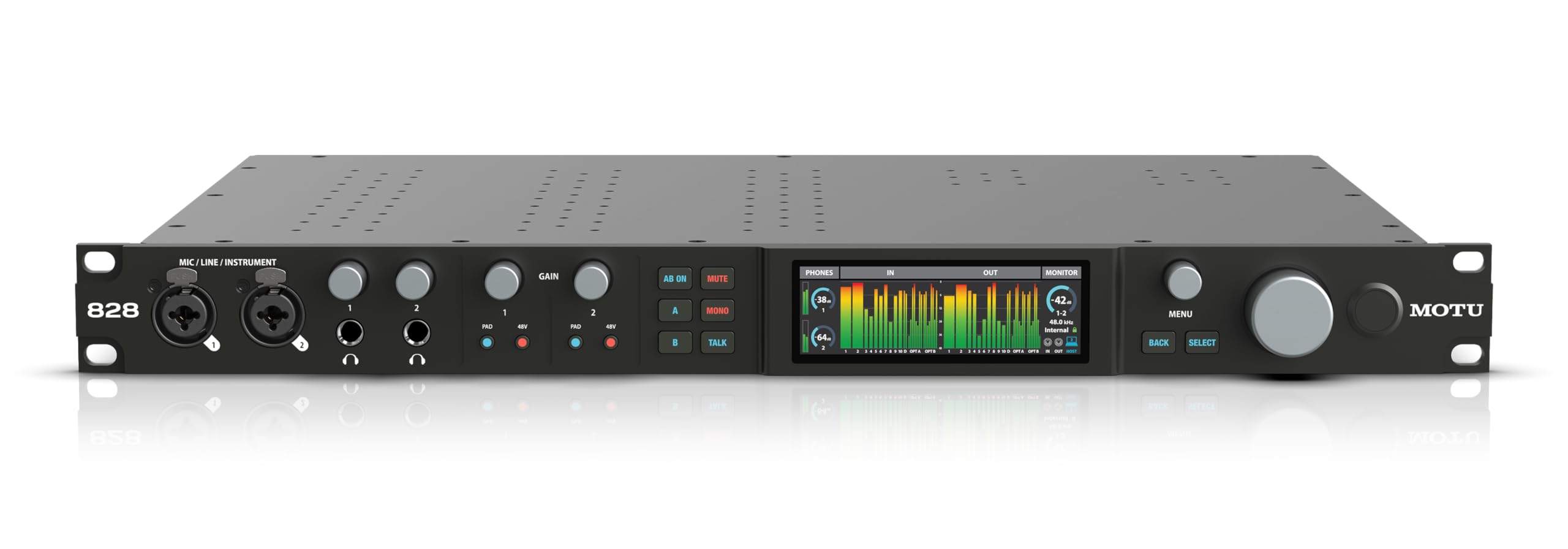

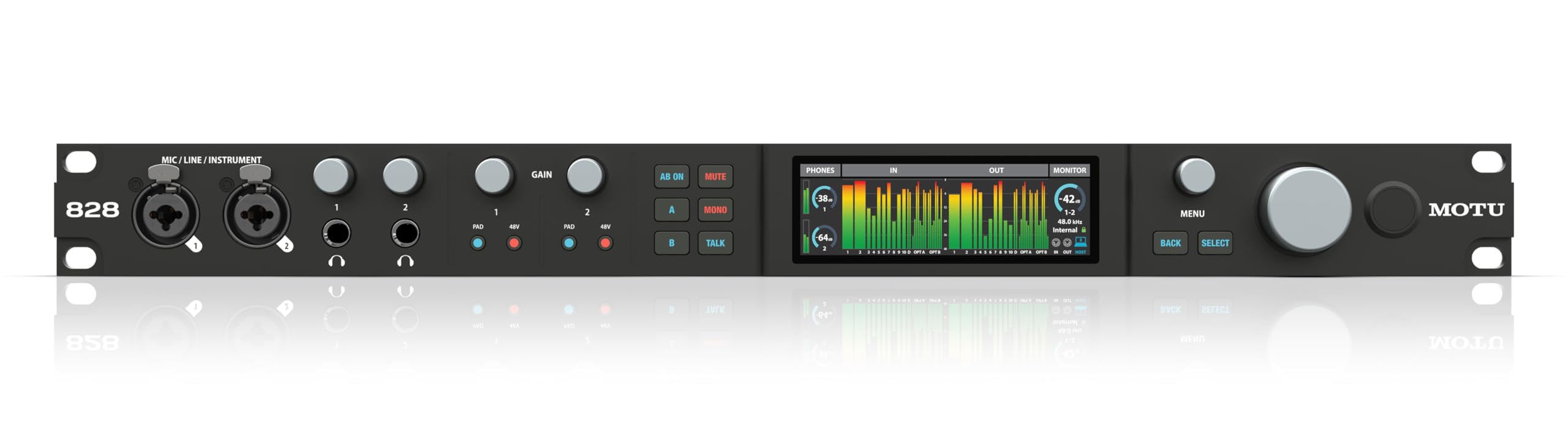

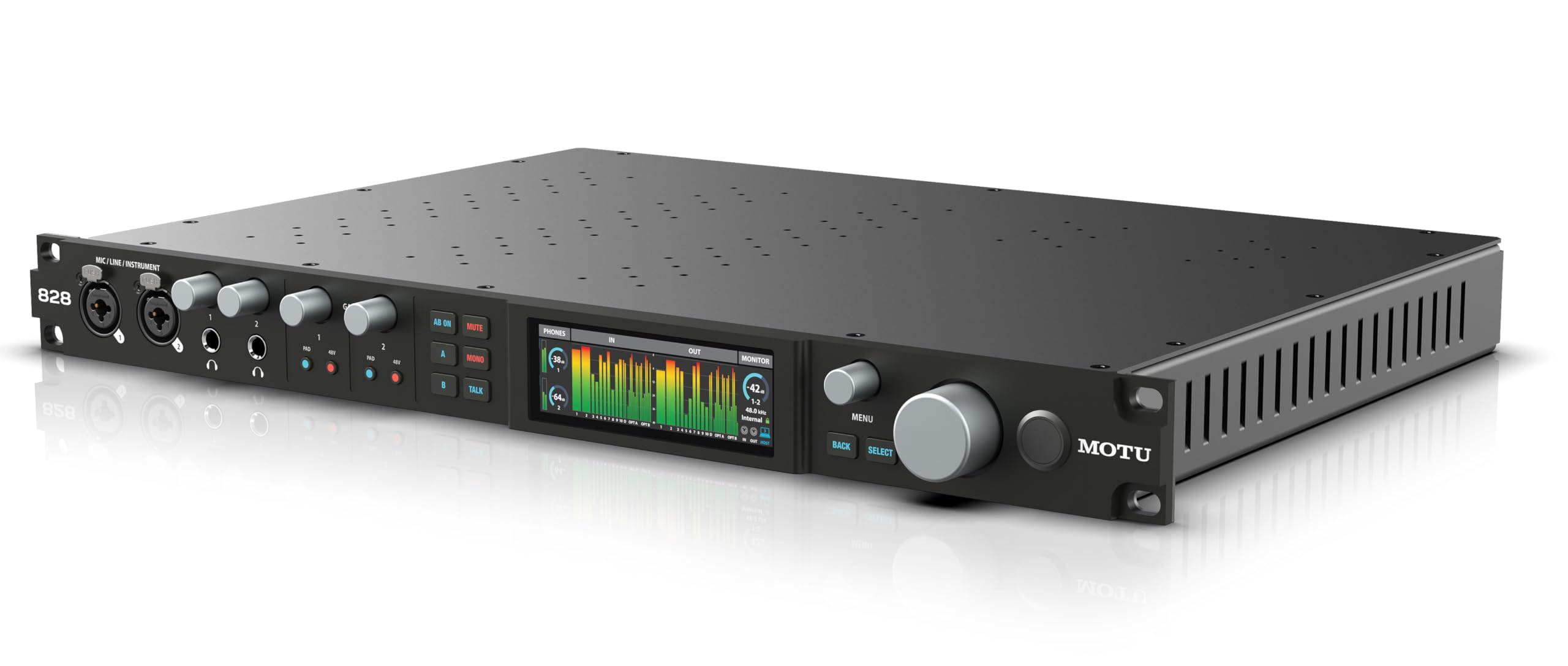

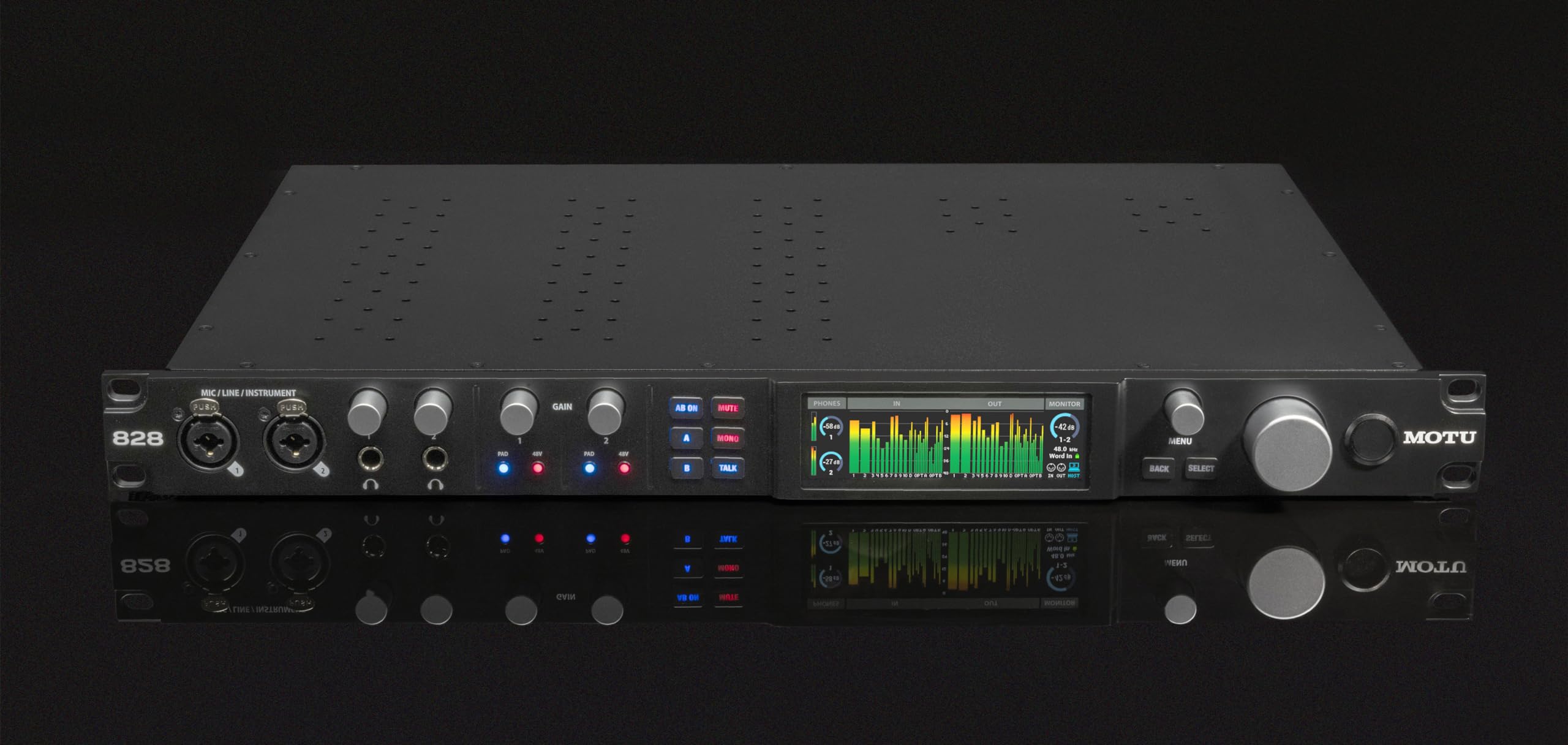

The All New 828 28 x 32 USB3 audio interface for Mac, Windows and iOS with mixing and effects Superb analog audio quality Renowned ESS Sabre32 DAC technology delivers 125 dB dynamic range and extremely low harmonic distortion. Analog performance is driven by decades of engineering expertise in audio interface technology. Universal connectivity Connect to your Mac, PC or iOS device with 5 Gbps USB 3 (compatible with USB 2), with up to 60 audio channels (28 in and 32 out). Class-compliant firmware means you can plug-and-play with Mac or iOS hosts, no driver needed. Industry standard high-performance drivers work with any audio apps. Connect directly to your iPad via USB-C or a standard camera connection kit (Lightning adapter). Transparent mic & guitar inputs Capture your recorded material in its truest, most natural form with -113 dB THD+N, 115 dB dynamic range and -129 dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power and remote control from your computer or iOS device. Each combo jack alternately provides a 1/4-inch high-impedance TS guitar input for DI tracking and reamping. 60 simultaneous audio channels Connect all your studio gear, including microphones, guitars, synths, keyboards, drum machines, outboard processors, MIDI gear, optical expanders — even a foot pedal. All 28 inputs and 32 outputs are available simultaneously. Ultra-low latency performance Optimized drivers for both Mac and PC deliver renowned, ultra-low latency performance. With a high-performance DAW such as Digital Performer, the 828 delivers an astonishing round trip latency (RTL) of ~2 ms (milliseconds) over USB (2 or 3) at 96 kHz with a 32-sample host buffer. DIY guitar re-amping DI your guitar to the front-panel input, use CueMix's near-zero latency to loop to any output (with a re-amp adapter, if needed), and record both the dry signal and your mic’d up amp simultaneously. Then re-amp the dry signal later with different amps and cabs — or amp modeling plug-ins — to experiment with different tones. No need to re-plug cables between recording and re-amping. Extra line inputs when you need them Do you work with compressors and other outboard gear? Each 828 mic input offers a dedicated analog send/return loop, allowing for both mono or stereo mic channel outboard processing via fully balanced connections. If nothing is plugged in to a mic input, its return serves as an extra line input with identical signal characteristics to all other line inputs. A/B speaker select and talkback Take control of your recording sessions with the front-panel talkback switch. Connect two sets of monitors and check your mixes instantly with front-panel A/B select buttons. Monitor Mixing with Effects CueMix 5 for Mac, Windows and iOS gives you simple, yet comprehensive graphic control over your mix with attractive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface (on iOS) for quick access to all mixing features, digitally controlled trims and other settings. Wireless Control — CueMix 5 for iOS Control all settings and mixing from your USB host or from an iPhone or iPad running the CueMix 5 app. You can even use multiple iOS devices simultaneously. Set a password for your 828 for network security.
